kyl-811

features



1 channel on-off di and do transmitting timely. the 1 channel switching condition for the transmitting equipment can be output timely at the receiver equipment. that is the switching condition for the transmitting equipment is shut down, while the switching condition will be shut down at the receiver equipment; and the transmitting equipment is disconnect, while the receiver equipment will disconnect. all channels are independent.no program,no wires,users can remote control switching.this product is widely-used in industrial controller,wireless monitoring,waterworks automation and other projects.



一、kyl-801l application diagram

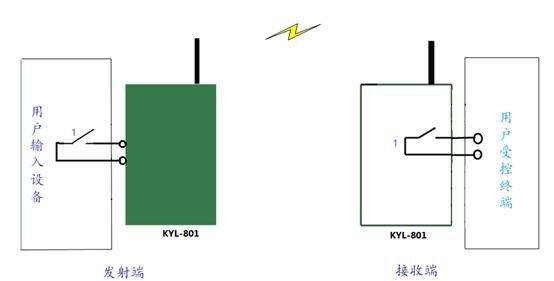

                                          pic. 1:working diagrams for correspond i/o information




application



wireless water pump automatic control

       wireless sound and light alarm lights

       industrial remote control, industrial site monitoring

       wireless car control

       water plant automation

       traffic automation control

       environmental monitoring system

       oil pipeline monitoring system





technical specification

                                                                kyl-811 parameters
featuresrangetypical valueremark
power supply d.c.12-30v24voutput current<500ma
transmission distance1-3 km- line-of-sight
ourput no. -1 output-
output type-relaymaximum load capacity dc   220v5a
input no. -1 input-
input type i-dry contact-
input type iidc   0-24vlow level<1vlow level corresponds to closed
high level>3vhigh level corresponding to disconnected
transmitting current -<300ma-
receiving current-<20ma-
dimension-89mm*41mm*32mm-

remarks: the input type has been specified according to the customer's requirements. so can not be changed after shipment.


 kyl-811 terminals and hardware introduction

1、 1 way relay output, with a load capacity of 220v/5a,

2, 1 way on-off switch input, support passive and active input.
    for passive input, simply connect a switch or button between i1 and gnd. the on or off state will be sent to the remote output module and output.

    when active input, the user needs to input a high or low level at the i1 terminal. the high level corresponds to the disconnection and the low level corresponds to the closed. note that when there is no level input, the receiver output is disconnected.

dip switch

1、

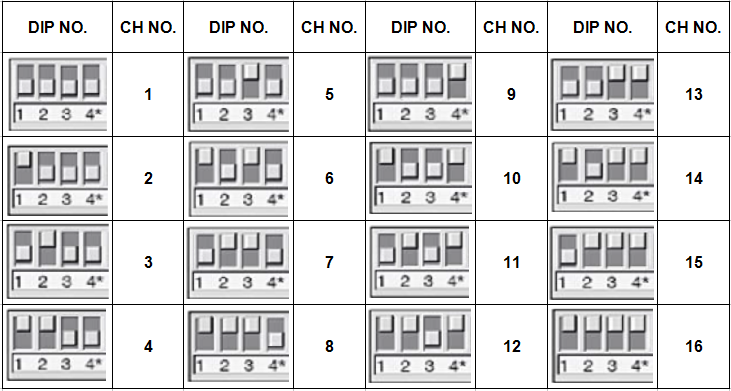

 dip1-4:channels choosing

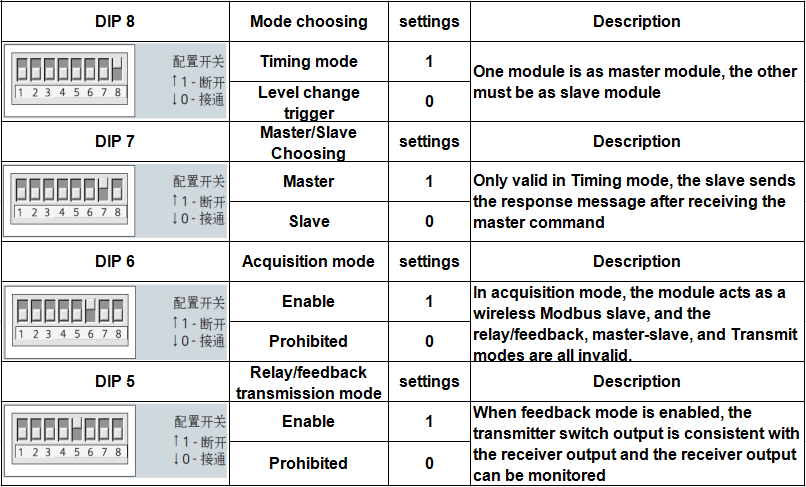

2、dip5-8:working mode choosing


remark:

    *users generally use the inputting change sending mode, dip7-on;

    *to avoid more than two remote control systems working at the same time in one remote control range, the        module for different system should choose different channel (working frequency);

    *in timing mode, one must be the master and the other is the slave

    *it should be effect by re-power on the module after changing the dip position.



pin definitions



pin no.colorpin definitionremark
1blackgndgrounding of power supply
2red12vdc:12-30v
3yellowout1(o1)first channel relay dry contact output
4whiteout1(o1)
5bluein1(i1)first group on-off input
6orangegnd
using method



1、install the antenna to the module.

    2, in accordance with the use of demand, according to the above instructions set the dip switch, connect          the corresponding switch input, switch output device.

    3, connect the power (12-30v), turn on the power switch, the power requirements of the output current needs        reach more than 500ma.

    4, at this point, the input of module can control the output of another module .

    5, the module is two-way transmission, that is, a module can as an input ,at the same time, can also be            used as a controlled output, and vice versa.

    6, within the same remote control distance range if user using more than two sets of remote control system,        one should use a different operating frequency to avoid mutual interference.





working mode



1、triger mode

       when on-off input status changed,it will triger i/o module to send the local status information. this          mode has fast speed,can be in real time.only when input status changed,then will send the signal,the            energy consumption will be low.

   2、timer mode

       at this mode, there should be one master and one slave module. the master will

       synchronize with the slave every 1s, means the master will transmits its condition to slave every 1s and        the slave will feedback its condition to master every 1s. if the time master cannot synchronize with            slave reaches at 3s, all contacts will disconnect. they connects until the master is synchronizing with        slave again. there will be 1s transmission delay at this mode.

   3、collecting mode

      at collecting mode, dip8(transmitting mode), dip7(master/slave mode) and dip5(repeater/feedback mode) are       all invalid. at this mode, module works as a modbus slave, it can not transmit data actively. master can       be a pc connecting with a wireless data module or other data terminal. data terminal sends modbus rtu

      command and requests slave feedback collection condition or control slave’s on-off output. slave’s id         can be 1 to 254.

   4、feedback/repeater mode

      at feedback/repeater mode, receiver will retransmit the command it received and make it reach longer           distance. it functions as a repeater. the transmitter will output related on-off condition on its output       com after receiving retransmitted command, meanwhile, the output indicator will be on/off. its output           condition will be the same with its input condition. if receiver didn’t receive the command, it will not       retransmit, feedback will fail. master’s output condition will be not the same with its input. this           function can monitor receiver’s output results.





kyl-811 other application



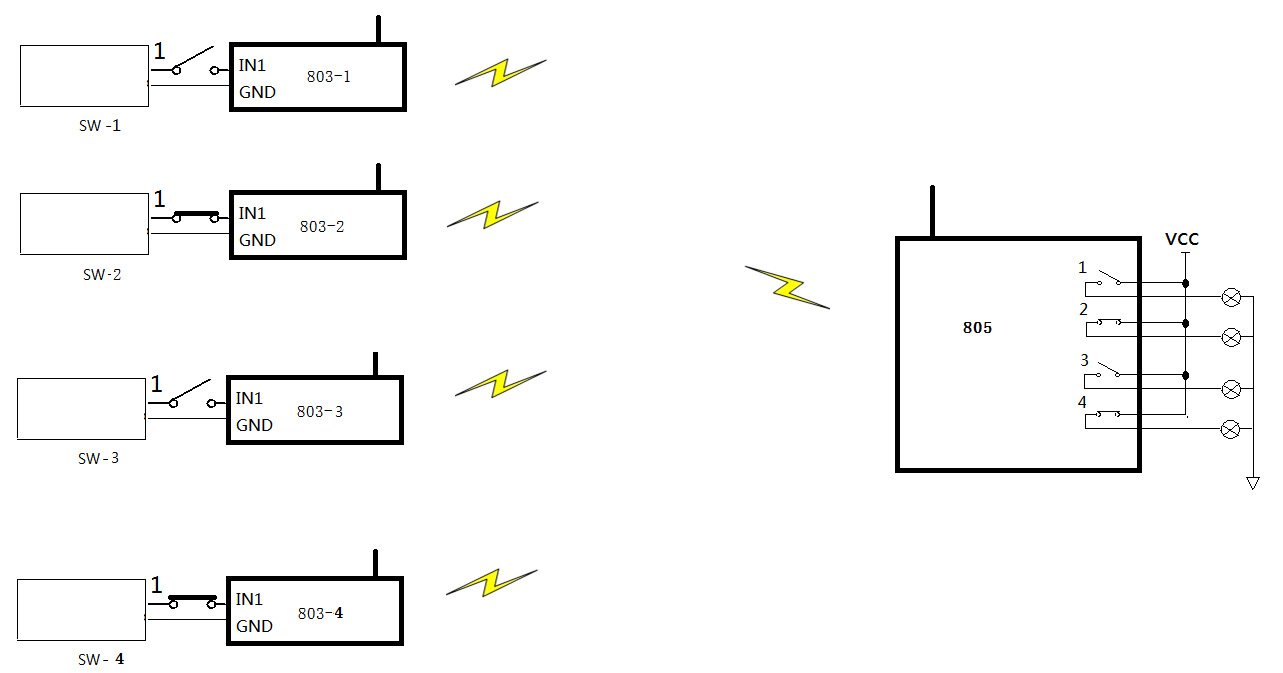

kyl-811 can work with same series i/o module: kyl-813,to reach the function of centralized control,and centralized output (please indicate to sales when you set the purchase order).please look the below diagram as example:


ordering information

standard product

module nameapplication
 kyl-811ubi-directional, 2pcs of this rf modules will help you do wireless communication., no program, plastic housing, communication distance 600m-1km (line of sight) based on power 100mw
 kyl-811lbi-directional, 2pcs of this rf modules will help you do wireless communication., no program, plastic housing, communication distance 2-3km (line of sight) based on power 800mw
 kyl-811hbi-directional, 2pcs of this rf modules will help you do wireless communication., no program, plastic housing, communication distance 7-10km (line of sight) based on power 5w
 kyl-811pbi-directional, 2pcs of this rf modules will help you do wireless communication., no program, plastic housing, communication distance 8-12km (line of sight) based on power 2-10w
 kyl-811 668bi-directional, 2pcs of this rf modules will help you do wireless communication., no program, plastic housing, communication distance 20km (line of sight) based on power 25w



packaging accessories

1、standard accessories

1、1pc kyl-811 module。

        2、1pc antenna

        pic.:standard accessories




2、selectable accessories

1、selectable antenna。(users can choose antenna if need)

        pic.:selectable accessories











previous: ttl test line
next: 232 test line
